| ブランド名: | HUAAO |
| MOQ: | 200〜 |
| 価格: | US$120~280/㎡ |
| パッケージの詳細: | 1。フォーム保護2。木製フレームのサポート3。フォークリフトの荷重とアンロード4。コンテナの荷重 |
| 支払条件: | L/C、T/T、D/A、D/P、T/T |
Huuao iso class 5-8 modular cleanroom - dustproof anti-static suitable for wafer manufacturing and optical coating
Huaao High-Precision Cleanroom for Wafer & Optics
Huuao's modular cleanroom systems for ISO Class 5-8 provide the critical environment required for advanced manufacturing processes like wafer fabrication and optical coating. These precision industries demand exceptional control over particulate contamination, humidity, and static electricity to ensure product yield and performance.
The cleanroom’s core function is to eliminate airborne particles and static discharge that can damage microstructures or cause coating defects. This is achieved through an integrated design:
Enclosure & Structure: The modular shell uses non-shedding, smooth panels to form an airtight environment, preventing external contamination.
Air Filtration & Flow: A high-performance HVAC system with HEPA/ULPA filtration provides precise, laminar or turbulent airflow to achieve the target ISO class.
Static Control: The system incorporates ESD-safe (anti-static) materials in flooring, walls, and furniture, along with humidity control, to prevent electrostatic discharge that can ruin sensitive components.
Environmental Control: Advanced monitoring maintains strict temperature and humidity levels, critical for process stability in both semiconductor and optical production.
Validation & Compliance: Each cleanroom is commissioned and validated to ensure it consistently meets the specified ISO class, supporting high-yield manufacturing in a controlled, repeatable environment.
Key Specifications
| Panel Sheet Material | Galvanized steel |
| Product Name | MGO/Rockwool/Silica/PU/Foam sandwich panel (Customized) |
| Type | Machine-made panel |
| Panel Sheet Thickness | 0.376; 0.426; 0.476; 0.526 mm |
| Panel Thickness | 50mm, 75mm, 100mm (Customizable) |
| Width | 980mm, 1180mm |
| Length | Customized |
| Core Material | MGO/Rockwool/Silica/PU/Foam sandwich panel |
| Color | Customized |
Product Features
Lightweight construction for fast installation
Excellent heat and sound insulation properties
Customizable dimensions and specifications
Factory-direct manufacturing with OEM/ODM services
Cleanroom Performance
Our modular cleanroom solution maintains ISO Class 6-8 air cleanliness standards through precision-engineered HVAC systems with HEPA/ULPA filtration, controlling temperature, humidity, and particulate levels to meet pharmaceutical-grade requirements.
Technical Specifications
| Brand Name | Huaao |
| Cleanliness Level | ISO Class 1-9 |
| Structure Composition | Sandwich Panel / Cleanroom Windows & Doors / Clean equipment / PVC Floor |
| Certifications | CE / UL / ISO / Fireproof / SGS |
Key Advantages
Premium materials from top suppliers (Baosteel, Lantian)
High-quality core materials and adhesives
Large production capacity (40,000㎡)
Established manufacturer with 800 employees across 6 factories
World-first automated production line for superior quality
Applications
Ideal for pharmaceutical manufacturing, medical device production, semiconductor facilities, healthcare environments, food processing plants, and cosmetic production facilities where controlled environments are critical.

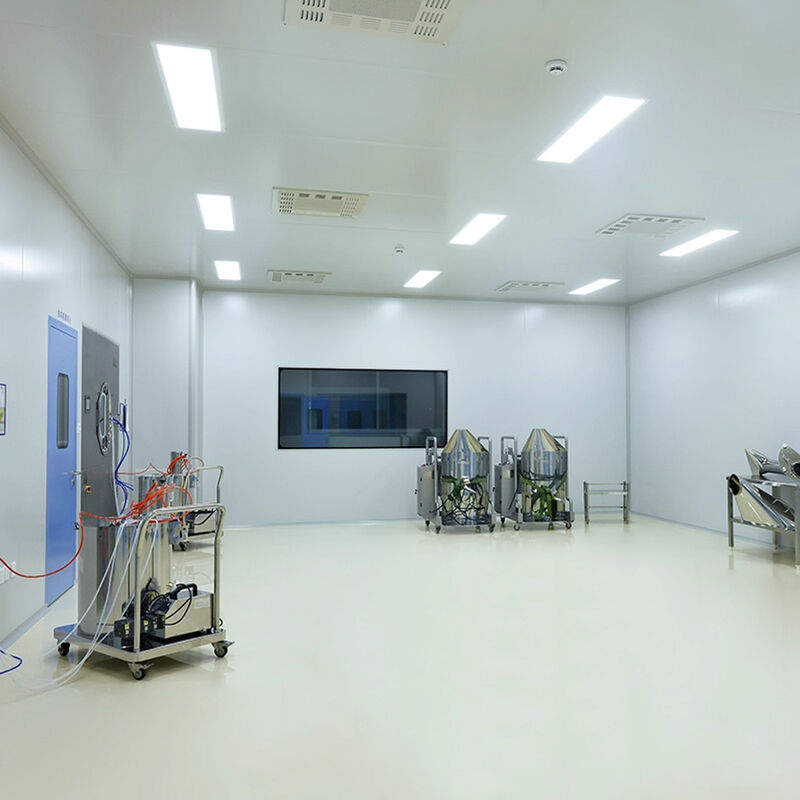

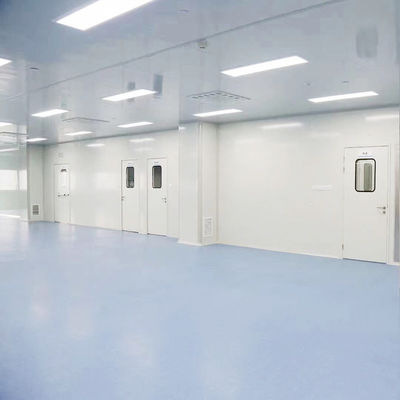

Project Photos
Manufacturing Facilities
Frequently Asked Questions
What are your core competitive advantages?
We source materials from Fortune 500 suppliers and maintain 800 employees across 5 strategically located factories. Our automated production line increases efficiency by 6-8 times compared to traditional methods.
Do you provide installation services?
While we don't have our own construction team, our panels feature excellent design for easy installation. We provide detailed instructions, installation videos, and can dispatch professional supervisors to your site if needed.
What product range do you offer?
Our portfolio includes over 100 different items, including cleanroom sandwich panels, doors, windows, aluminum profiles, PVC flooring, and various cleanroom equipment.
Can you provide samples?
Yes, we offer free samples, though we request customers to cover the shipping costs.
What are your payment terms?
Standard terms are 30% T/T prepayment with 70% balance due before delivery. We're open to discussing alternative arrangements for long-term partnerships.
|
